Better Performance
Rapid switching between on-grid and off-grid modes, seamless power-source switching, strong off-grid load capacity, high cycle efficiency and a broader operating temperature range.
All-in-one ESS Solution
GC50-100
An all-in-one mini-grid and energy-storage system integrating a hybrid inverter, AC power distribution unit, energy management unit, battery module and battery control unit for convenient installation and maintenance.
50kWNominal power
96kWhBattery capacity
IP21Protection
Safer
Built-in temperature detection, fire-suppression module within the battery pack, and separate PCS and battery cabinets to improve heat dissipation.
Smarter
Built-in energy management, generator start/stop control, load management, grid-interaction management, cloud monitoring and remote control.
GC50-100
Integrated Energy Storage
One system. Multiple operating modes.
The GC50-100 is designed for backup power, mini-grid and commercial ESS applications. It combines power conversion, storage and system management in one integrated solution, with flexible expansion, intelligent control and multiple protection functions.
Better Performance
Rapid switching between on-grid and off-grid modes, seamless power-source switching, strong off-grid load capacity, high cycle efficiency and a broader operating temperature range.
Safer
Built-in temperature detection, fire-suppression module within the battery pack, and separate PCS and battery cabinets to improve heat dissipation.
Smarter
Built-in energy management, generator start/stop control, load management, grid-interaction management, cloud monitoring and remote control.
More Flexible
Supports parallel system expansion, AC and DC coupling, multiple operating modes, zero grid feed-in and two optional AC outputs.
More Convenient
Modular design and detachable cabinets support easier transportation, installation and maintenance.
Designed forBackup power, mini-grids and commercial ESS
GC50-100
Technical specifications
Specifications are grouped for faster scanning on desktop and mobile.
System Specification
- Nominal Output Power / Maximum AC Input Power
- 50kW / 55kW
- Battery Capacity Range
- 96kWh
- Battery Chemistry
- LiFePO4
- IP Protection
- IP21
- System Cabinet Dimensions (W×H×D)
- 700×2000×800mm
- Battery Cabinet Dimensions (W×H×D)
- 700×2000×800mm
Hybrid Inverter Specification
- Nominal Power
- 50kW
- Battery Voltage Range
- 320–800V
- Maximum Charging / Discharging Current
- 160A
AC Side (Grid)
- Nominal Output Power / Maximum AC Current
- 50kW / 80A
- Nominal AC Voltage / AC Voltage Range
- 400V / 230V (-20% to +15%)
- Nominal Grid Frequency / Frequency Range
- 50Hz / 47–52Hz; 60Hz / 57–62Hz
- AC Current THD
- <5% (resistance load)
- Adjustable Reactive Power
- -30kVA to +30kVA
AC Side (Micro-grid)
- Nominal AC Voltage
- 400V / 230V (-5% to +5%)
- AC Voltage THD
- <3% (resistance load)
- Unbalance Load Capacity
- 100%
- AC Output Power
- 50kW
Solar Charge Controller
- PV Open Circuit Voltage
- 250–850V
- MPPT Voltage Range
- 200–830V
- PV Short Circuit Current
- 25+25+25+25A
- Maximum PV Power
- 15+15+15+15kW
General
- Maximum Efficiency
- 97.80%
- Reverse Polarity Protection
- Yes
- Grid Monitoring / Ground Fault Monitoring
- Yes / Yes
- Insulation Monitoring
- Yes
- Overheat Protection
- Yes
- Operating Ambient Temperature Range
- -30 to 60°C (>45°C derating)
- Allowable Relative Humidity (non-condensing)
- 5–95%
- Maximum Operating Altitude
- 2000m (>2000m derating)
- Safety
- IEC62477, IEC62109-1/2
- EMC
- IEC61000-6-1/2/3/4
- Grid Regulation
- EN 50549
- Grid Support
- LVRT, active and reactive power control, and power ramp-rate control
Lithium Battery Technical Specification
- Module Voltage
- 48V
- Module Capacity
- 9.6kWh
- Module Quantity
- 10 series
- Operating Temperature Range
- Discharge: -20 to +50°C; Charge: 0 to +50°C
- Maximum Charging / Discharging Current
- 100A / 200A
- Safety
- UN38.3
- EMC
- EN61000-6-2/-4
Application Scenarios
Flexible deployment across three core use cases

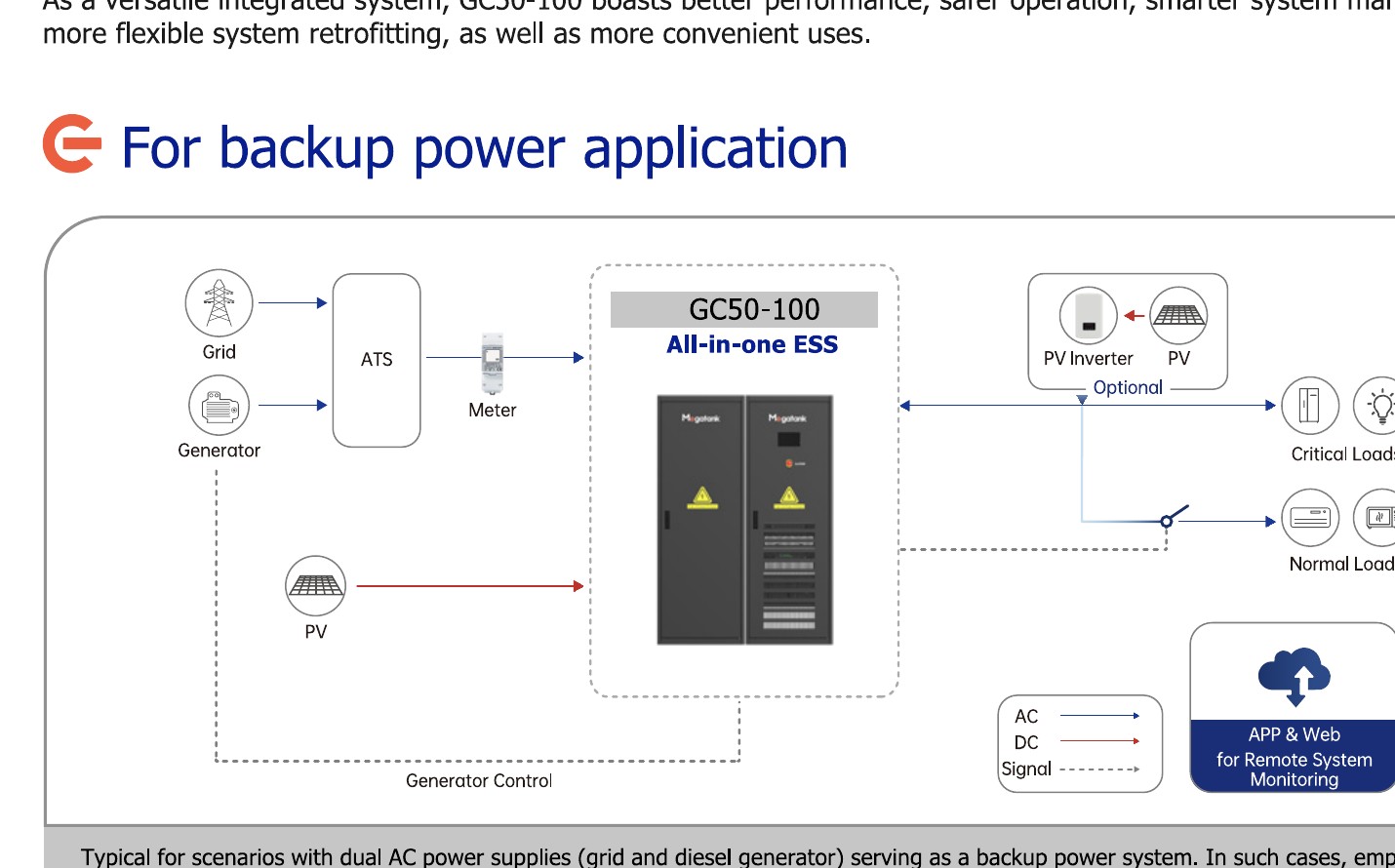

Backup Power
For scenarios with dual AC power supplies, such as the grid and a diesel generator. The grid acts as the main input, the generator provides backup, and PV energy is prioritised before battery charging or export where permitted.
Mini-grid
For remote locations such as border posts or small villages. PV supplies the loads first, surplus energy charges the battery, and the generator starts automatically when the battery reaches a preset low state of charge.

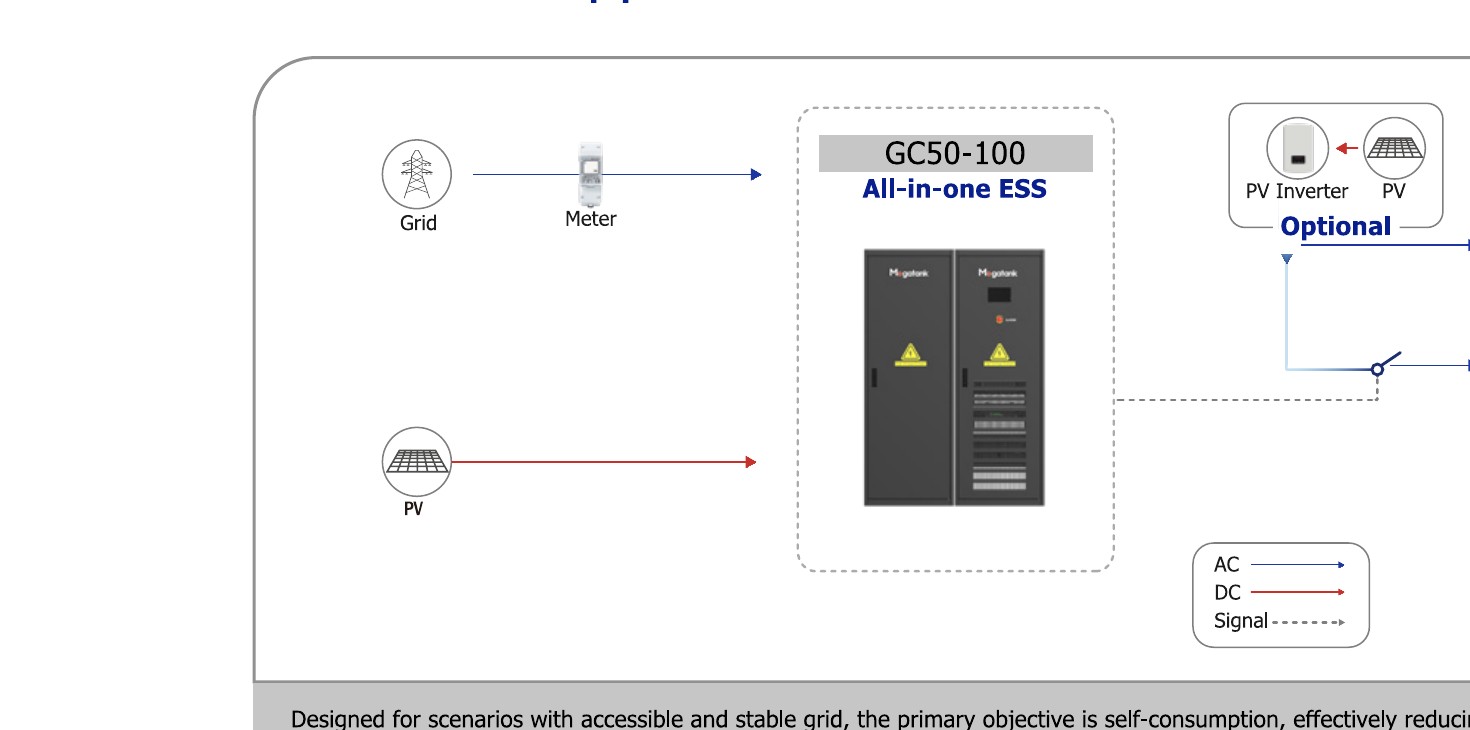

ESS / Self-consumption
For sites with an accessible and stable grid. The system prioritises solar energy, supports charging and discharging control through an energy meter, and can return permitted surplus energy to the grid.
Product Resources

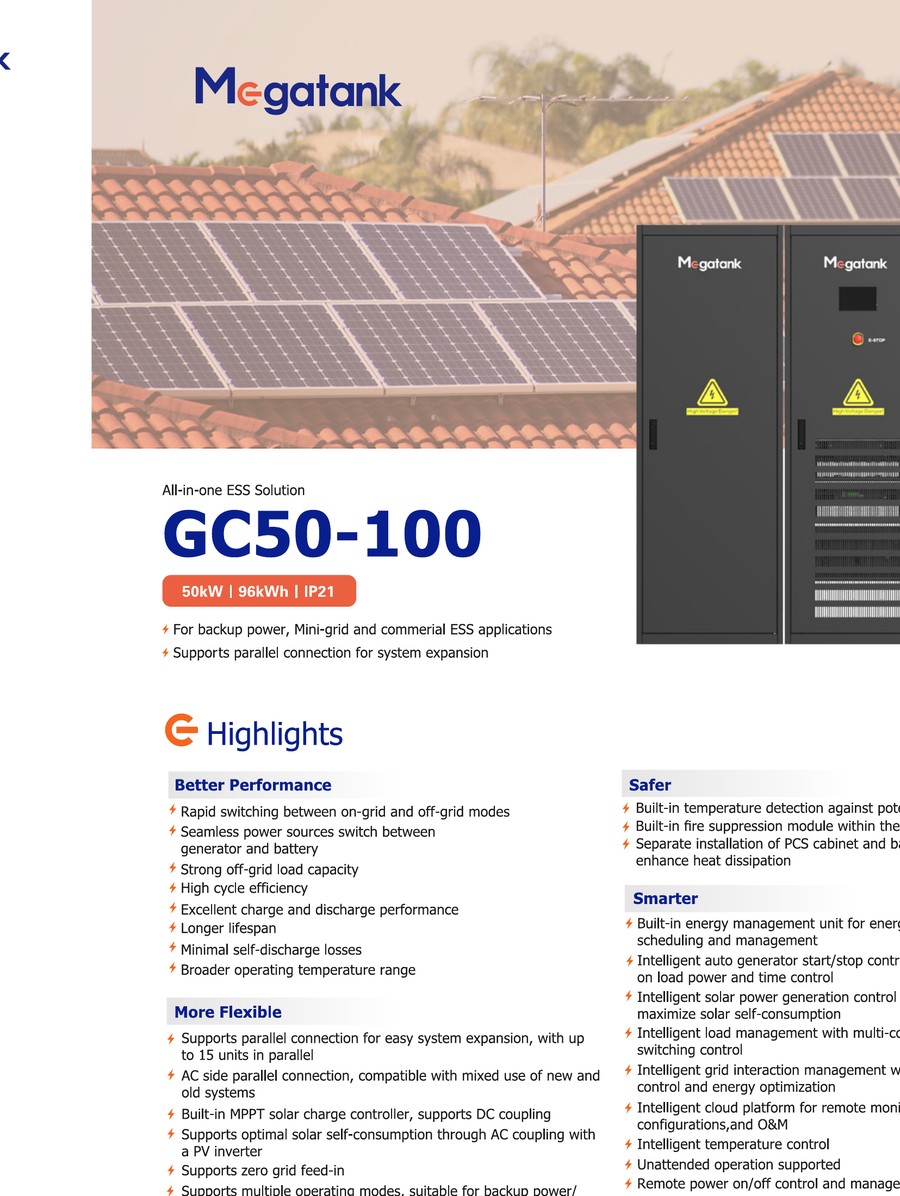

Download the GC50-100 specification catalogue
The brochure contains the complete technical tables, product highlights and application diagrams supplied for this model.
PDF specification catalogue
